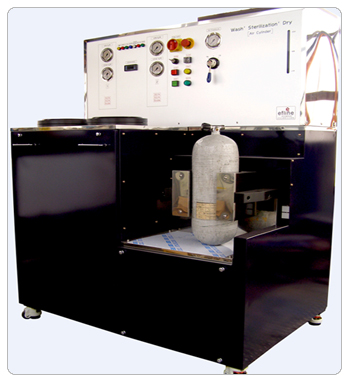

When you press the button just once, you can finish all process from washing to drying. The system has indicator light to display operation process. It also has emergency push button and perception sensor for SCBA cylinder. |
|
|
|
|
It has the advantage that it can wash 50-min. SCBA cylinder, and even 30-min. and SCUBA cylinder
for skin scuba divers by applying multiple adaptor.
|
|
|
|
|
It washes everywhere with up-and-down 360 degree revolving nozzle. It also eliminates pollutant or oil etc. caused by long term stored compressed air by using about 35 kg/㎠ of high-pressure water spray with natural detergent.
|
|
|
|
|
It enhances the efficiency operation and space owing to the integration of washing, drying and valve opening and shutting system by using torque wrench.
|
|
|
|
|
After washing of the SCBA cylinder with high pressure spray nozzle at first, it does the second sterilization by injecting electrolyzed silver particle into the SCBA cylinder through silver-ion sterilization water pump. Silver ion, which is harmless, has strong deodorization power with sterilizing power.
|
|
|
|
|
|
Size
|
1200(W)×1550(H)×820(D)/mm |
Weight |
Max. 200kg |
Supply Voltage |
380V |
Power Consumption |
Max. 5kW |
Material |
SS400 2.0T |
Drain |
PT2-1/4″ (50A) |
Water Pump |
30~35kg/㎠ |
Flow |
Max. 110L |
Silver Bar |
99.9% Degree of purity |
|
|
|
|
|
|
|
Multiple adaptor |
Fixure equipment for SCBA |
Perception sensor |
|
|
|
|
|
|
Easy to operate |
Washing nozzle |
|
|
|
|
|
|
|
|
